PRIMEX

Water System Integrator and Controls Provider

PRIMEX
Products

  • Arc Armor Control Solutions



    The safe, innovative, multiple compartment ARC ARMOR® System reduces the risk of injury resulting from arc flash and electric shock by limiting access to electrical equipment capable of producing arc flash incidents.



    The control and power circuitry are isolated in separate compartments, where only control voltage is present (120V max), thus preventing unnecessary exposure of operators to arc flash.



    What is Arc Flash?

    With 5-10 arc flash incidents occurring per day, arc flash is a leading cause of death and burn accidents for maintenance staff when servicing electrical control panels in North America today.



    On-site damages caused by arc flash incidents include: OSHA citations or fines, down time, loss of revenue and equipment damage.  In worst case scenarios, arc flash may result in long term disability or even death thereby having a significant impact on the liability of the municipality.&nb...
    More Information » www.primexcontrols.com/municipal/arcarmorsolutions...

    Arc Armor Control Solutions

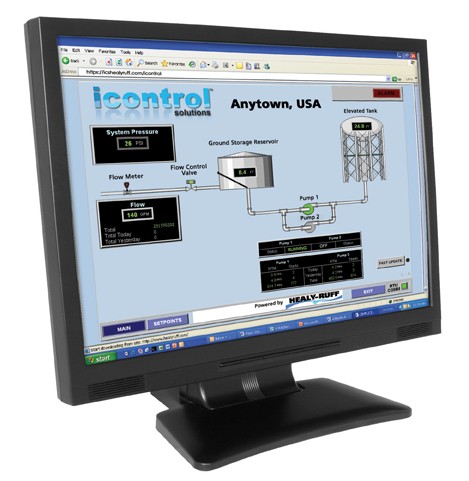

  • icontrol Web Hosted SCADA Solution

    icontrol® is the ideal solution for communities and operators seeking all the benefits of a full automation and control systems without the expense and hassle of owning and maintaining these technologies.
    • Control - Improve your system performance with full-featured, open-architecture SCADA and PLC functionality.
    • Affordability - Improve your bottom line with monthly service fees that fit within your operating budget while lowering your operating expenses.
    • Manageability - Improve your peace of mind by focusing on your operations - we'll manage your control system

    For a surprisingly low monthly fee, our solutions provide you secure, remote access to a state-of-the-art SCADA system from any internet-enabled computer.

    • No dedicated SCADA Hardware (high-end PC or Server) to buy and maintain
    • No SCADA software to buy and maintain
    • No remote "SCADA client" license and software to buy or maintain
    • PLC...
    More Information » www.primexcontrols.com/icontrolsolutions.html

    icontrol Web Hosted SCADA Solution

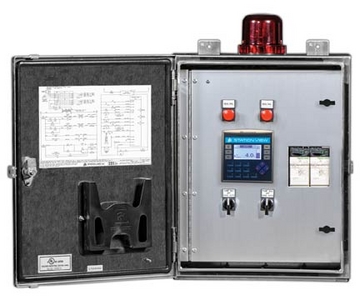

  • 331 SV Control Panel

    The 331-SV pump control panel is designed to be simple, yet versatile for all standard duplex applications.  One panel covers three phase, three voltages for an unbelievable value.  It operates with floats, a level transducer or both!  "Fit and Click" the appropriate overload modules into the starter and you are off and running.

    The 331-SV control panel features the Station View™ controller which is simple to operate with an intuitive menu and clear graphics display.

    SPECIFICATIONS

    • Padlockable wall mount NEMA 4X stainless steel enclosure
    • Single-point power connection
    • IEC HP rated motor starter with adjuable "Fit and Click" overload modules
    • 10HP max @ 208V, 240V; 20HP max @ 480V
    • Class 10 ambient compensated overload relay
    • Pump short circuit dicsonnect/overload reset accessible through inner door
    • Tri-voltage step-down control transformer
    ...
    More Information » www.primexcontrols.com/331svpanel.html

    331 SV Control Panel

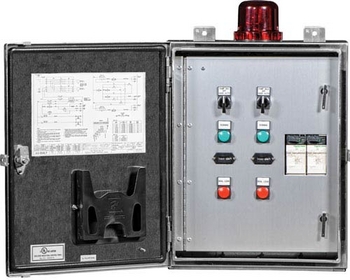

  • 331 Control Panel

    The 331 Lift Station Control Panel is designed to be simple, yet versatile for all of your standard duplex application needs.  One control panel covers three phase, three volts for an unbelievable value!  “Fit and Click” the appropriate overload module into the starter and you are off and running.


    FEATURES

    • Padlockable wall mount NEMA 4X enclosure (stainless steel or fiberglass)
    • Single-point power connection (NE models include an additional 120V power connection for the alarm circuit)
    • IEC HP rated motor starter with adjustable overload module
    • 10HP max @ 208V; 240V
    • 20HP max @ 480V
    • Class 10 ambient compensated overload relay
    • Pump short circuit disconnect and overload reset accessible through the inner door
    • Tri-voltage step-down control transformer
    • Separate alarm/control fuses (NE models include separat...
    More Information » www.primexcontrols.com/331panel.html

    331 Control Panel

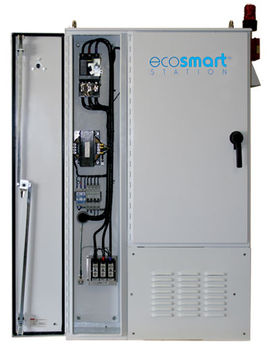

  • Eco Smart Station Control Panels

    The ECO SMART STATION® is housed in the innovative, multiple compartment ARC ARMOR® enclosure, reducing the risk of injury resulting from electric shock and exposure to arc flash.  The control and power circuitry are isolated in separate compartments, thus preventing unnecessary exposure of arc flash to operators.  It features the ENERGY VIEW® controller powered by kW Logix® software, an energy efficient solution.

    The color touch screen HMI has the ability to provide level control, pump alternation, flow monitoring, data logging, alarm logging, historical trending and comes equipped with an SD memory card for data storage and download.  It can connect through multiple communication streams for remote monitoring and control.  The ECO SMART STATION® uses the latest technology in variable frequency drive, microprocessor-based controller, data storage and communication capabilities available.  This pre-engineered system is available in...
    More Information » www.primexcontrols.com/ecosmartstation.html

    Eco Smart Station Control Panels
  • PumpPak Express A Float Based Control Panel

    Pumpak Express offers ease with standard control panels for float-based applications. Pumpak Express control panels are built using the highest quality components and workmanship in the industry. They also feature the Float-Pak controller, the industry standard for reliable, full functionality pump control and alternation that is installed in thousands of water and wastewater applications.
    Series A control panels provide float-based control for a wide range of applications:
    Simplex or Duplex Pump Circuits
    •Pump “In” or Pump “Out” applications
    •Pumps up to 15 horsepower

    FEATURES
    •Affordable “Packaged” Solution
    •Wall Mountable and Compact in Size
    •Quick Turnaround Time
    •Easy to Install and Set Up
    •Operation and Maintenance Manual
    •Indicator Lights
    •Pump Run; Seal Fail; Motor Over Temp
    •Pump Over Temp Reset Button
    •Hand-Off-Auto Switch
    More Information » www.primexcontrols.com/pumpakcontrols.html

    PumpPak Express A Float Based Control Pa...
  • PumpPak Express B PLC Based Control Panel

    Pumpak Express makes it easy with standard control panels for PLC applications. Control panels are built using the highest quality components and workmanship in the industry. They also feature the Micro-VPAC II LSC controller, an “all-in-one” open-architecture device that combines control, graphic user interface, I/O and telemetry options.
    Series B control panels provide open-architecture PLC control for a wide range applications:
    •Simplex, Duplex or Triplex Pump Circuits
    •Pump “In” or Pump “Out” applications

    FEATURES
    •Affordable “Packaged” Solution
    •Quick Turnaround Time
    •Easy to Install and Set Up
    •Operation and Maintenance Manual
    •Versatility
    •Setup a Variety of Level Sensors and Ranges With No Programming
    •Operability
    •Large Daylight Readable Touch Screen Display
    •Intuitive Buttons and Navigation
    •Historical Data
    More Information » www.primexcontrols.com/pumpakcontrols.html

    PumpPak Express B PLC Based Control Pane...
  • Pump Watch Web Based Cellular Remote Monitoring Solution

    Pump Watch™ is a comprehensive family of cloud-based monitoring systems designed for wastewater pump stations and multiple other applications.  The family offers a simple and effective tool for management of wastewater or water collection systems via a cellular network.

    Alarms are monitored and service personnel notified in the event of failure.  Data logging and trending of critical information enables users to visually track system performance and recognize impending problems.  Station data can be seen in a simple and intuitive format from a web browser on a PC, tablet or smart phone.

    •Utilizes cellular networks (CDMA; GSM optional)
    •Alarm notifications via email and text messaging (SMS)
    •Battery backup
    •Pump Watch™ designed specifically for municipal lift stations
    •Pump Watch™ Multi designed for pumping or non-pumping applications
    •Pump Watch™ Express designed for basic monitori...
    More Information » www.primexcontrols.com/municipal/remotemonitoring....

    Pump Watch Web Based Cellular Remote Mon...
  • Pump Watch Express Web Based Cellular Remote Monitoring System for Duplex Lift Stations

    Designed for Duplex lift station monitoring applications, Pump Watch Express works with a mobile App for easy set up and monitoring.

    Designed with less I/O for basic lift station monitoring applications.  Pump Watch™ Express works with a Mobile App for easy setup and monitoring.  Pump Watch™ Express includes:


    •Built-in I/O (no controller required)
    •2 pump run digital inputs
    •4 configurable digital alarm inputs
    •1 level input (4-20 mA)
    •1 relay output
    •Battery backup for digital inputs
    •Can also be monitored on the same Pump Watch™ web portal - user can mix and match
    •2 service options - Light (DI) or Premium (AI and DI)



    More Information » www.primexcontrols.com/pumpwatchexpress.html

    Pump Watch Express Web Based Cellular Re...
  • Pump Watch Multi Web Based Remote Monitoring For Pump or Non-Pump Applications

    Designed for pumping or non-pumping applications, Pump Watch™ Multi includes:


    •6 configurable digital alarm inputs
    •1 configurable analog input (4-20 mA)
    •3 configurable relay outputs
    •3 pump run inputs
    •Level input
    •I/O descriptions on the web portal are user configurable



    More Information » www.primexcontrols.com/pumpwatchmulti.html

    Pump Watch Multi Web Based Remote Monito...
  • Station View Duplex Pump Controller

    The Station View™ duplex pump controller provides pump amp, pump flow, power loss, and pump HOA selector switch monitoring.  The graphic backlit display offers easy navigation, intuitive set up and a real time clock.  The Station View™ controller can operate with a 4-20mA submersible transducer or four float switches.

    FEATURES
    •Level monitoring
    •Flow monitoring
    •Pump flow in feet
    •Bar graph
    •Float status
    •Pump GPM

    LEVEL SENSORS
    •Transducer with high and low level back up float switches
    •Stop, start, lag and high level float switches

    SPECIFICATIONS
    Pump Control and Protection:
    •Automatic pump alternation
    •Pump dry run protection
    •Pump run indication
    •Pump amp indication
    •Pump HOA switch monitoring

    System:
    •24 hour data logging with 7 days of historical data
    •Volume pumped
    •Number of starts...
    More Information » www.primexcontrols.com/stationview8482.html

    Station View Duplex Pump Controller
  • Level View Two or Three Pump Controller

    The Level View™ is a versatile controller that controls two or three pumps.  The pumps can be constant or variable speed and pump up (water) and pump down (wastewater) control modes are supported.  The sunlight readable color touch screen HMI has the ability to provide on/off level and speed control, pump alternation, flow monitoring, data logging, alarm logging and historical trending.  It comes equipped with an SD memory card for data storage and download.  Connectivity options provide flexibility for SCADA/BAC automation and a plug and play Pump Watch™ interface.  UL/cUL Listed.

    Features:

    •Continuous level monitoring
    •Flow monitoring (without a flow meter)
    •Pump current monitoring
    •Duplex or triplex pump operation
    •Alarm data logging
    •Pump HOA switch monitoring
    •Real time clock
    •Level bar graph
    •Level simulation
    •Pump up or pump down application...
    More Information » www.primexcontrols.com/levelview.html

    Level View Two or Three Pump Controller

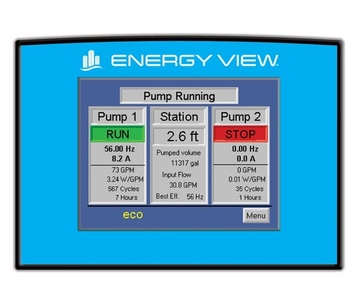

  • Energy View Controller Powered by kW Logix for Energy Savings

    The Energy View® Controller is powered by kW Logix® Software*.  The color touch screen HMI has the ability to provide level control, pump alternation, flow monitoring, data logging, alarm logging, historical trending and comes equipped with a SD memory card for data storage and download.  IT can connect through multiple communication streams for remote monitoring and control.

    Features:
    •Continuous level monitoring
    •Flow monitoring (with or without a flow meter)
    •Power monitoring
    •Motor current monitoring
    •Pump speed control
    •Pump efficiency monitoring (W/GPM)
    •Energy View® LE available Duplex or triplex
    •Constant or variable speed

     Specifications:
    Pump Control and Protection:
    •Pump efficiency Auto-Tuning (lowest W/GPM)
    •Automatically switches to PID mode during high in-flow
    •Automatic alternation
    •Pump low efficiency alarm
    ...
    More Information » www.primexcontrols.com/energyviewcontroller.html

    Energy View Controller Powered by kW Log...
  • Float Pak Controller

    Setting the standard for float-based pump control, the Float-Pak’s simple design and status indication has set the industry standard for float control and is installed on thousands of pump stations. The many features allow you to simplify your operation, increase your reliability and receive the meaningful, easy to use information about your system’s status.
    Improve your pump station performance
    •Automatic alternation equalizes equipment wear and extends equipment life
    •Standardized functionality and components, surge prevention and redundancy increase reliability
    •Easy to read and understand status indicators speed operational and maintenance procedures
    •Easy to buy, install and use
    •Available mounted in UL508A listed control panels
    •Ideal for both new and retrofit applications
    •Standard specifications and drawings
    •Rapid delivery with hassle-free installation
    •Clear status indication
    More Information » www.primexcontrols.com/floatpakcontroller.html

    Float Pak Controller
  • PC 1000 Duplex Pump Controller

    The PC-1000 controller is specifically designed for duplex pump control applications.

    FEATURES
    •Duplex pump controller
    •Power input: fused and transient protected
    •Float inputs (4): 5VDC @ 1mA max.
    •Float  and sensor inputs transient protected
    •Pump run indicator lights
    •Pump call indicator lights
    •Hand/Off/Auto switches
    •Pump seal fail input with indicator lights
    •Pump over temperature inputs with automatic disable and indicator lights
    •High level alarm indicator light
    •Alarm test push button
    •Pump alternation selector switch
    •Removable "quick connect" terminal strips for easy service
    •Automatically demote pump with seal fail condition to lag pump
    •Built-in delay for pump starts and pump stops
    •Output for flashing alarm light


    More Information » www.primexcontrols.com/pc1000.html

    PC 1000 Duplex Pump Controller
  • PC 2000 Float Based Duplex Pump Controller

    The PC-2000 is a full featured, float-based duplex pump controller.

    FEATURES
    •Duplex pump applications
    •Power input: fused and transient protected
    •Float inputs (5):  5VDC @ 26mA max.
    •Float  and sensor inputs transient protected
    •Pump run indicator lights
    •Pump alternation switch
    •Pump seal fail inputs with indicator lights
    •Pump over temperature inputs with automatic disable and indicator lights
    •Switch selectable for latch to requires manual reset
    •Output for flashing alarm light
    •Relay output for alarm horn with mute reset for common alarm
    •High level alarm indicator light
    •Low level alarm indicator light
    •"Push-to-Test" float switches with indicator lights
    •Float "Out-of-Order" detection with indicator lights
    •"Fail-to-Start" test (switch selectable enable/disable)
    •Pump disable inputs (can be used for SCADA, e...
    More Information » www.primexcontrols.com/pc2000.html

    PC 2000 Float Based Duplex Pump Controll...
  • PC-3000X One, Two or Three Pump Controller

    The PC-3000X is a controller designed to operate up to 3 pumps in pump-up or pump-down applications. The controller sequences pumps on and off in response to a change in level input. When used to control the level in a tank, the input is connected to a 4-20mA sensor. A rotary selector wheel is included along with back and escape push buttons for intuitive menu navigation and quick setting adjustments. A 2.7" blue OLED 6 x 256 pixel display provides easy to read level readout and fault annunciation.

    FEATURES
    •Configurable with no programming software required
    •Red LED indicates an active alarm
    •Green LEDs indicate pumps required
    •Multiple alternation configurations
    •Bar graph shows level on display screen
    •Constant or variable speed control
    •User selectable level units
    •I/O status screen to aid system troubleshooting




    More Information » www.primexcontrols.com/pc3000x.html

    PC-3000X One, Two or Three Pump Controll...
  • SP6R Setpoint Microprocessor-based Controller

    The SP6R level controller is a simple, easy to use microprocessor-based controller which monitors any 4-20mA signal.  The controller features six programmable relay outputs that can be used for control and alarm. The transducer input zero and span are fully configurable. A simulation mode allows the user to test the set points and relay operation. The SP6R Level Controller can be configured for pump down or pump up applications, including:
    •Level Monitoring
    •Pressure
    •Temperature
    •Flow Analytical

    FEATURES

    •Configurable level measuring range
    •Analog input: 0.1% resolution 4-20 mA signal, built-in noise filtering and averaging
    •Eight character, alpha-numeric, avionics-grade LED for process value display and program parameters
    •20 segment scalable bar graph represents actual level in percentage
    •6 programmable relay outputs
    •On board 24 VDC, 30 mA excitation voltage
    •Easy n...
    More Information » www.primexcontrols.com/sp6r.html

    SP6R Setpoint Microprocessor-based Contr...
  • SP6R-LSC Duplex Microprocessor Based Controller

    The SP6R-LSC is simplicity at its best, incorporating numerous control and monitoring features into one user-friendly unit to monitor levels in wet wells.

    The easy-to-use microprocessor-based controller monitors the level via a submersible pressure transducer or any other device with a 4-20 mA signal output.  The controller provides pump alternation and has a simulation feature with automatic time out.  The SP6R-LSC displays:
    •Level Set Points
    •Pump Run Time
    •Pump Cycle Count
    •Actual Level

    FEATURES
    •4-20 mA level input with configurable zero and span

    •Bar graph display of wet well level, configurable to feet, inches, percentage or metric
    •Six level set points:Run time meter for each pump â—¦High water alarm (with relay output)
    •Start lag pump (with relay output)
    •Start lead pump (with relay output)
    •Stop lag pump
    •Stop lead pump
    •L...
    More Information » www.primexcontrols.com/sp6rlsc.html

    SP6R-LSC Duplex Microprocessor Based Con...
  • Roto-Tran IV Pressure Transducer

    The enclosed Roto-Tran IV is a pressure transducer that provides a 4-20 mA signal over its labeled pressure range. The Roto-Tran IV is available in six different pressure ranges from 0-300 PSI. This loop powered, barometric and temperature compensated device uses a high-accuracy piezo-electric sensing element.
    This transducer is constructed from 316L stainless steel and carries a NEMA 4X rating. Tank and pipe mounting can be accomplished by its integral, threaded process connection.SPECIFICATIONS
    •Service: Compatible gasses and liquids
    •Wetted Materials: Type 316L Stainless Steel
    •Accuracy: 1% full scale (includes linearity, hysteresis, and repeatability)
    •Temperature Limit: 0 to 200°F (-18 to 93°C)
    •Compensated Temp Range: 0 to 175°F (-18 to 79°C)
    •Thermal Effect: +/-0.04% FS/°F (includes zero and span)
    •Power Requirements: 13 to 30 VDC
    •Output Signal: 4 to 20 mA
    •Response Time:...
    More Information » www.primexcontrols.com/images/PRIMEX-RotoTranIV.pd...

    Roto-Tran IV Pressure Transducer
  • Custom OEM Solutions

    Let PRIMEX become your preferred engineered pump control  panel project partner - working with you from process control panel concept to manufacturing.  PRIMEX has the ability to handle low volume production runs, as well as highly repeatable high volume production runs.  Custom embedded solutions are available for high volume proprietary designs.

    Concept:
    PRIMEX utilizes deep engineering resources across multiple locations to develop a custom process controls solution for you.  New project design begin by listening to what you need and developing the solution to meet your individual specifications.

    Design:
    As a collaborative process, our PRIMEX engineers work with you to develop a detailed quote and process control solution design.  Product private labeling is also offered and the ability to customize installation or manual materials that ship with the control system.  Once approved, the project moves into the manufacturing phase....
    More Information » www.primexcontrols.com/industrial/customoemsolutio...

    Custom OEM Solutions
  • Eco Smart ATL Station

    ECO SMART Stat ion® ATL Control Panel with Across The Line Starters

    The ECO SMART STATION® ATL is a pre-engineered ARC ARMOR® enclosure, the ECO SMART STATION® ATL Energy View® controller
    • Flow measurement
    • Level transducer with 2 float backup
    • Pump monitoring relays (seal fail and over
    temperature)
    • NEMA rated starters
    • Electronic overload protection
    • Current monitoring and trending
    • Lightning arrestor
    • Terminal blocks


    More Information » www.primexcontrols.com/images/ES_ATL-Brochure-PRIM...

    Eco Smart ATL Station
  • MUNI Float Municipal Control Float (Narrow Angle)

    Mechanically activated narrow angle float that is internally weighted and ideal for level control in municipal sewage pumping stations or applications with high grease content.  Unique gold cross-point contacts provide precision and reliable control signals up to 1 Amp.  This CSA certified MUNI float can be used in water and sewage applications as well as in low current control panel alarms and with programmable logic controllers (PLC).


    More Information » www.primexcontrols.com/images/PRIMEX-MUNIFloat.pdf

    MUNI Float Municipal Control Float (Narr...
  • PSLT Submersible Level Transmitter

    The PSLT Submersible Level Transmitter is designed for continuous level monitoring.  The instrument measures the hydrostatic pressure of the water above the sensor and outputs a 4-20 mA signal proportional to the level.  The PSLT robust design provides a reliable and low maintenance solution for level control applications.


    More Information » www.primexcontrols.com/images/PRIMEX-PSLT-Data_She...

    PSLT Submersible Level Transmitter
  • Level Sensor Kits with new 6 position stainless steel hanging hook bracket

    PRIMEX offers a variety of Level Sensor Kits for pump station control panels including float switches and transmitters and now offers a new 6-position stainless steel hanging hook bracket.


    More Information » www.primexcontrols.com/images/Level-Sensor-Kits-Da...

    Level Sensor Kits with new 6 position st...
Documents

  • Arc Armor "Your Shield in the Field" Control Solutions Brochure

    ARC ARMOR...YOUR SHIELD IN THE FIELD. The safe, innovative, multiple compartment ARC ARMOR® System reduces the risk of injury resulting from arc flash and electric shock by limiting access to electrical equipment capable of producing arc flash incidents. The control and power circuitry are isolated in separate compartments, where only control voltage is present (120V max), thus preventing unnecessary exposure of operators to arc flash. What is Arc Flash? With 5-10 arc flash incidents occurring per day, arc flash is a leading cause of death and burn accidents for maintenance staff when servicing electrical control panels in North Ame... More »

    Arc Armor "Your Shield in the Field...
  • icontrol Cloud Based SCADA Solutions Bro...
  • Eco Smart Station Brochure
Documents

Eco Smart ATL Station Brochure
August 4, 2015 4:18pm

Documents

Eco Smart AB Station Brochure
August 4, 2015 4:19pm
