Parkson is a supplier of equipment and solutions for potable water, process water, and industrial and municipal wastewater applications. Parkson designs, engineers and assembles products that provide customers with advanced screening, biological, filtration and biosolids mangement solutions. We also have a highly trained field service team capable of completely rebuilding aging equipment or retrofitting equipment to include the latest technological advancements. Founded in 1960 and headquartered in Fort Lauderdale, Florida, Parkson is an industry leader in the USA with a global installation base. Additional branches are located in Chicago, Kansas City, and Denver.


  • Aqua Guard® UltraClean™- Self-Cleaning Moving Media Channel Screen

    The new Aqua Guard® UltraClean™ represents the next generation of in-channel fine screening, outperforming the original design in side-by-side capture rate tests by over 50%.  This superior performance comes from a series of patent-pending improvements in the “head” of the Aqua Guard® UltraClean™ screen, each drawn from over 30 years of experience with the classic Aqua Guard® platform.

    Designed with the operator in mind, the Aqua Guard® UltraClean™ also offers easier access to key areas of the screen such as the brush, which has been reengineered to reduce routine maintenance by up to 75% over the original version.  The Aqua Guard® UltraClean™ technology is available both on new screens, and as a new “head” retrofit for existing Aqua Guard® element screens.

    More Information » www.parkson.com/products/aqua-guard-ultraclean

    Aqua Guard® UltraClean™- Self-Cleanin...
  • Aqua Guard®- Self-Cleaning Moving Media Channel Screen

    The Aqua Guard® is a rugged and proven self-cleaning in-channel screen that uses a unique filter element system designed to automatically remove a wide rang of floating and suspended solids from a wastewater stream.

    These unique elements are woven together on stainless steel shafts to form the endless moving belt that collects, conveys and ultimately discharges the solids that are being removed from the treated wastewater.

    The Aqua Guard® is capable of performing in a wide range of applications and element spacing settings – from 1mm to 30mm –depending on the requirements of the specific treatment process.

    More Information » www.parkson.com/products/aqua-guard/continuous-sel...

    Aqua Guard®- Self-Cleaning Moving Media...
  • Aqua Guard® PF- Perforated Plate Media Channel Screen

    The Aqua Guard® PF screen is a self-cleaning, in-channel screening device that utilizes perforated plate media to automatically remove a wide range of solids from wastewater.  The screen design is built on the Aqua Guard® bar/filter screen chassis that has been proven successful with over a thousand units installed and in operation.  The Aqua Guard PF can be made with the heavy-duty “S” chain or the standard duty chain.

    More Information » www.parkson.com/products/aqua-guard-pf

    Aqua Guard® PF- Perforated Plate Media...
  • Aqua Caiman™ Articulating Rake Screen

    The Aqua Caiman™ represents the next generation of articulating rake screen. The system’s flexible belt assembly handles large solids with ease and eliminates need for a bottom bearing. Teardrop shaped bars and a low-profile screen bottom are designed for low headloss. True 100% rake engagement is achieved with the patent pending True-Engage™ bar fastening design. The True-Track™ chain positioner allows for adjustment without a hoist. The Aqua Caiman® is designed to fit various applications and is an excellent choice for plants seeking low maintenance screening. It can be used in conjunction with Parkson's conveyors or wash compactors to complete the screening system.

    More Information » www.parkson.com/products/aqua-caiman

    Aqua Caiman™ Articulating Rake Screen
  • Aqua Rhino™ Escalating Screen

    The Aqua Rhino™ represents the next generation escalating screen. Manufactured in the USA and made of stainless steel, it is the most durable step screen on the market with lifting blades and frames 50% thicker than leading competitors. Its robust design and advanced drive system provide high performance and durability in a cost-efficient package. A redesigned screen bottom and optional spray bar washout system significantly reduce machine wear due to grit buildup. Available in three installation angles and designed to fit channel widths from 20-84 inches.

    More Information » www.parkson.com/products/aqua-rhino

    Aqua Rhino™ Escalating Screen
  • Aqua WashPress®- Dewatering Screw Press

    The Aqua WashPress® can economically and effectively wash and dewater screenings from in channel and rotating screens in a variety of applications.  The Aqua WashPress® will lower hauling and disposal costs by reducing weight and volume of screenings.

    More Information » www.parkson.com/products/aqua-washpress/dewatering...

    Aqua WashPress®- Dewatering Screw Press...
  • Rotoshear®- Internally-Fed Rotating Wedgewire Drum Screen

    With more than 1,000 installations, Rotoshear® is a proven high-capacity fine screening technology for municipal wastewater treatment plants and many industries for various applications.

    In wastewater treatment plants, the Rotoshear® unit is renowned as a fine screen for pretreatment and primary treatment to replace primary clarifiers. They are also used as sludge screens. Industrial users, such as meat processors, food processors, tanneries, textile mills, petrochemical plants, and recyclers, rely on it for product recovery and wastewater treatment. Pulp and paper mills use it for fiber recovery and rejects handling.

    More Information » www.parkson.com/products/rotoshear/internally-fed-...

    Rotoshear®- Internally-Fed Rotating Wed...
  • Rotoshear® PF- Pre-Membrane Screen

    Rotating drum screens with perforated plate screen media are the most successful solution for screening prior to an MBR system. Because Rotoshear® PF uses Rotoshear’s base structure, it is the most reliable and highest capacity screen for an MBR plant.

    Unlike center-flow band screen technologies, Rotoshear® PF does not allow bypass of solids larger than the screen opening. Plants using other technologies often face problems with membranes fouling. As a result of those problems, several plants switched to Rotoshear® PF to eliminate their concerns about membrane fouling.

    More Information » www.parkson.com/products/rotomesh/internally-fed-r...

    Rotoshear® PF- Pre-Membrane Screen
  • Rotostrainer®- Externally-Fed Rotary Wedgewire Screen

    Introduced over 25 years ago, the Rotostrainer® screen is the original self-cleaning wedgewire screen. With over 700 installations, it is a proven fine screening technology for municipal wastewater treatment plants and many industries with several application capabilities.

    In wastewater treatment plants, the Rotostrainer® unit is renowned as a fine screen for pretreatment. It is also the industry choice for scum screening.  Industrial users, such as meat processors, food processors, tanneries, textile mills, petrochemical plants, and recyclers, rely on it for product recovery and wastewater treatment.

    The screen is externally-fed so that influent is directed under a baffle, then upward and over the length of the cylinder. The natural action of wastewater cascading through the screen creates a powerful backwash which results in a continuously clean surface. Solids are caught on the outside of the screen surface and are removed by a tensioned doctor blade.
    More Information » www.parkson.com/products/rotostrainer/externally-f...

    Rotostrainer®- Externally-Fed Rotary We...
  • Helisieve® M- In-Channel Fine Screen

    The Parkson Helisieve® In-Channel Fine Screen combines fine screening, conveying and dewatering to create a highly economical system that produces screenings dry enough to take to a landfill without the need of an additional dewatering press. Screen openings are available in the standard ¼” perforations or optional 1/8”.  The heart of the system is a shaftless spiral with a brush in the screen basket area to keep the screen clean.

    Operation of the spiral is based on level control upstream of the screen basket.  Screened solids are conveyed out of the channel, dewatered and discharged into a dumpster or conveyor.

    Units are available in a tank when a channel is not available. A common in-tank option to pre-treat septage (with special controls) prior to being accepted in a wastewater treatment plant.

    More Information » www.parkson.com/products/helisieve

    Helisieve® M- In-Channel Fine Screen
  • Combi®- Packaged Headworks System

    The Combi® is an all-in-one headworks solution that integrates fine screening, screenings dewatering and grit handling in a single, pre-fabricated, stainless steel unit.

    The system is designed for sewage or septage pretreatment at the wastewater treatment plant. All components are engineered for proper interface, low maintenance, optimal throughput and simple, reliable operation. A variety of options are available to meet site specific requirements.

    Fine screens are available in opening sizes of 1/8” (3mm) or 1/4” (6mm) diameter to meet your needs.

    More Information » www.parkson.com/products/combi/packaged-headworks-...

    Combi®- Packaged Headworks System
  • Helicon®- Shaftless Spiral Conveyor

    The Helicon® spiral conveyor is the answer for efficient, reliable automatic transport. The conveyor is frequently used in conjunction with other Hycor® equipment to create a solids management system that conveys the screened solids to washing or dewatering, and ultimately to disposal.

    The Helicon® conveyor is totally enclosed. Bolt-on covers contain odors, keep extraneous materials out, eliminate spills and minimize housekeeping.

    The Helicon®’s shaftless spiral design is extremely simple, uncomplicated and will provide years of trouble-free performance.

    More Information » www.parkson.com/products/helicon

    Helicon®- Shaftless Spiral Conveyor
  • Helixpress®- Shaftless Spiral Dewatering Press

    The Helixpress® unit is the cost-effective solution for dewatering the screenings collected by any type of screen. It is an all-in-one conveyor, compactor and dewaterer. It utilizes a combination of drainage, compaction and dewatering to reduce weight and volume and ultimately decrease hauling and disposal costs.

    The Helixpress® is designed to pass the EPA Paint Filter Test which is required on solids dryness for landfill applications. It can convey solids as far as 30 ft. and at a maximum of a twenty degree angle. It is designed to handle screenings up to 157 cu.ft./hr. Multiple screens may discharge to a single Helixpress® unit.

    More Information » www.parkson.com/products/helixpress/shaftless-spir...

    Helixpress®- Shaftless Spiral Dewaterin...
  • Biolac®- Long Sludge Age Process

    Biolac® is an innovative activated sludge process that allows for extended sludge age to create an extremely stable system that is easy to operate.

    The Biolac® system maintains the required mixing of the activated sludge and suspension of the solids at only 4 CFM per 1000 cu.ft. of aeration basin volume. As a result, air delivery to the basin can be reduced during periods of low loading while maintaining effective food-to-biomass contact and without the risk of solids settling out of the wastewater.

    A major advantage of the Biolac® system is its low installed cost. Biolac® systems can be installed in earthen basins and with or without linings. The BioFuser® fine bubble diffusers require no mounting to basin floors or associated anchors and leveling. These diffusers are suspended from the BioFlex® floating aeration chains. The only concrete structure that is required is for the simple internal clarifier(s) and blower/control–buildings.
    More Information » www.parkson.com/products/biolac/innovative-extende...

    Biolac®- Long Sludge Age Process

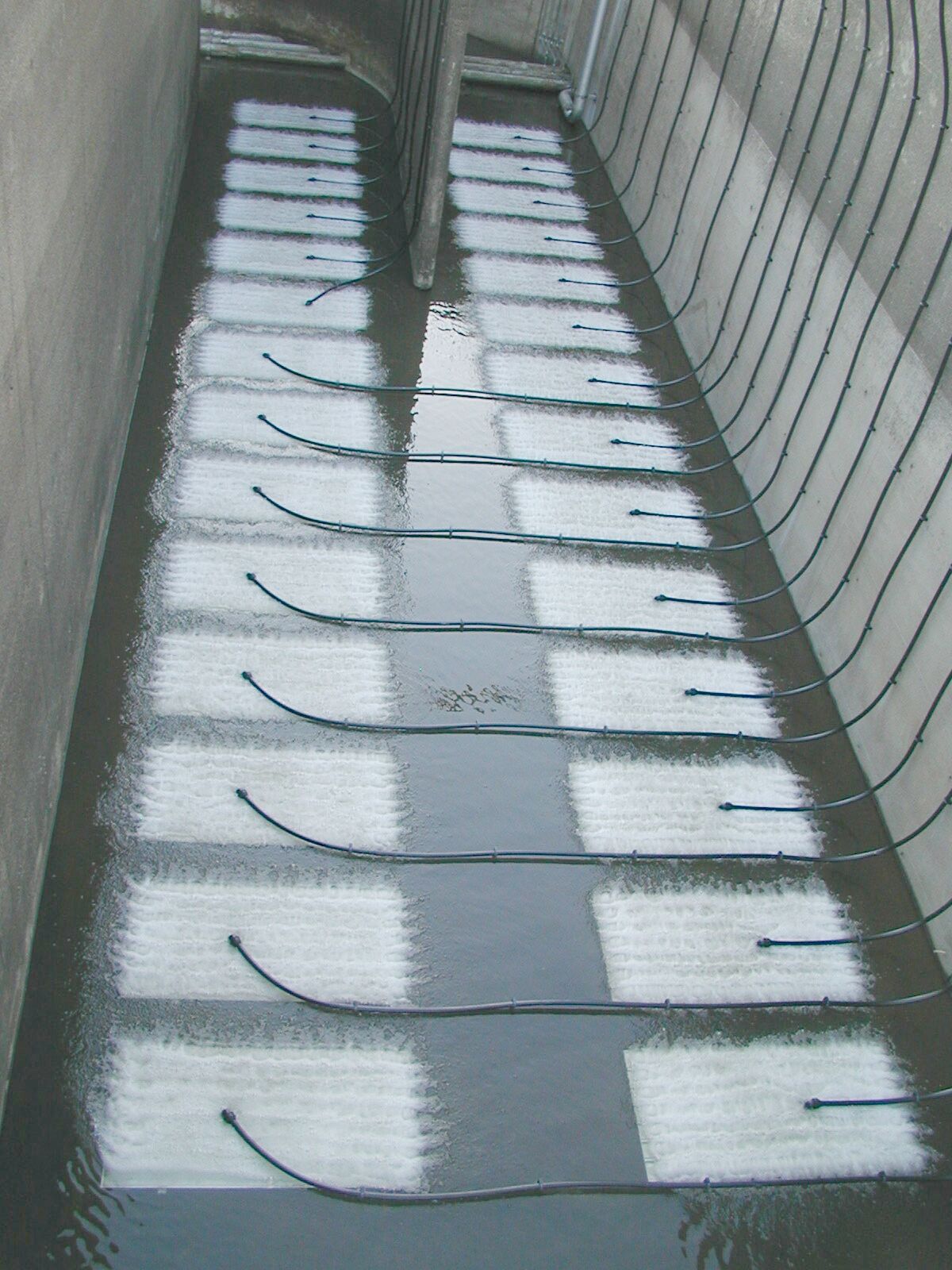

  • HiOx® Messner® Aeration Panel

    With the HiOx® Messner® Aeration Panel we strive to provide equipment and processes maximizing each of these. This is the most consistently efficient system available to minimize energy requirements for aeration. High quality materials stand up to nearly any wastewater medium. It uses a durable design and construction that has shown the ability to last many years into the future. All of these features combine to provide maximum value for our customer’s investment in their facilities.

    The HiOx Messner Aeration Panel uses a frame and support base of 316 stainless steel to support a TPU polyurethane membrane. This high strength membrane provides longer useful life than other commonly used materials as demonstrated by multiple installations in continuous service for over 15 years. The product produces an ultrafine bubble to efficiently transfer oxygen from compressed atmospheric air into activated sludge aeration systems. The large surface and rectangular shape prov...
    More Information » www.parkson.com/products/hiox-messner-aeration-pan...

    HiOx® Messner® Aeration Panel
  • EcoCycle SBR™- Sequencing Batch Reactor

    The EcoCycle SBR™ from Parkson combines industry leading DynaPhase Control™ technology with high efficiency treatment schemes designed to provide reliable and flexible performance for today’s stringent effluent needs.

    The EcoCycle SBR™ is a true-batch SBR design, which allows for an ideal anaerobic / anoxic fill period, perfect for biological phosphorus removal and Nitrogen removal.  The true-batch design will also allow for a perfect quiescent settling step, promoting ideal sludge settling and compaction before the decant of the treated effluent.  In the EcoCycle SBR™ basin designs are not limited by basin geometry or configuration.  Deep tank SBR basins are encouraged for better O2 transfer, which can lead to reduced operating expenses.

    More Information » www.parkson.com/products/ecocycle-sbr

    EcoCycle SBR™- Sequencing Batch Reacto...
  • VariOx™- Jet Aerator

    The VariOx™ jet aeration system is an aeration and mixing device used in numerous water and wastewater treatment applications. Jet aeration combines many of the benefits and efficiencies of both mechanical and diffused air type systems. The jet aerator consists of an inner liquid nozzle and an outer air nozzle. Liquid from the basin is re-circulated through a jet motive pump and discharged through the inner liquid nozzle at a high velocity. Concurrently, air is fed into the outer air nozzle where it is mixed with the motive liquid and discharged as a high energy jet plume.

    The cross flow of motive liquid through the air entering the outer nozzle creates a shearing action which generates a medium to fine air bubble. The air bubbles are entrained within the jet plume and discharged in a horizontal plane into the lower portions of the basin.

    More Information » www.parkson.com/products/variox

    VariOx™- Jet Aerator

    Parkson’s PISCES™ CFSBR is a sequencing batch reactor process which operates in a continuous fill mode. It combines the process benefits of cyclical treatment with the simplified operating concept of continuously filling all reactor tanks at all times. Flow is split evenly to all tanks utilizing a splitter box with manual valves, eliminating the need for cycling automatic valves to control influent. Anoxic and anaerobic fill conditions for filamentous control and nutrient removal are achieved during settle and decant when aeration is turned off, yet flow is still entering the reactors. An underflow baffle provides a barrier between the influent entry point and the main react zone where the decanter is located, allowing settle and decant to occur under quiescent conditions.

  • EquaReact®- Combined Equalization and Treatment System

    EquaReact® is a unique wastewater treatment process that combines hydraulic flow equalization and multi-stage (anaerobic, anoxic, or aerobic) activated sludge treatement as a system offering to provide biological or enhanced nutrient removal in both industrial and municipal markets. The EquaReact System reduces land requirements, energy consumption, and capital costs while increasing the overall treatment system performance and efficiency.

    More Information » www.parkson.com/products/equareact

    EquaReact®- Combined Equalization and T...
  • EquaCel®- Soluble BOD and Ammonia Removal Pretreatment System

    EquaCel® is a unique wastewater pretreatment process that utilizes the Parkson EquaReact® process along with Dissolved Air Floatation (DAF) technology as a system offering to achieve both hydraulic flow equalization and high efficiency soluble BOD and ammonia removal for Industrial wastewater pretreatment.

    More Information » www.parkson.com/products/equacel

    EquaCel®- Soluble BOD and Ammonia Remov...
  • EquaJet®- High-Efficiency Nitrogen Removal via Jet System

    EquaJet® is a unique wastewater treatment process that utilizes the Parkson jet system and multi-stage activated sludge treatment as a system offering. More specifically, the jet recirculation pump is used to provide mixing through highly efficient nitrate and/or anoxic recycle flow in a multi-stage biological or enhanced nutrient removal system. The EquaJet® System may be used within the EquaReact® System in both municipal and industrial markets, but can also be used as a stand-alone, multi-stage activated sludge treatment Ssystem.

    More Information » www.parkson.com/products/equajet

    EquaJet®- High-Efficiency Nitrogen Remo...
  • DynaSand® EcoWash®- Continuous or Intermittent Backwash Filter

    The Parkson DynaSand® EcoWash® Filter is a unique system that filters liquid suspensions to the designed effluent quality, while at the same time cleaning the sand bed so the filter is not shut down during the backwash time. Feed water is passed upwards through the sand bed and exits the top of the filter as clean water. At the same time, sand can be removed from the bottom, cleaned and returned to the top.  A small portion of the filtered water is used to wash the sand and leaves the filter as a reject stream.

    The DynaSand® EcoWash® Filter allows continuous filtration with intermittent sand washing. Operating in this mode, the system reduces the amount of reject water, increases filter performance, maximizes the airlift lifecycle, and reduces maintenance time.

    The DynaSand® EcoWash® Filter is available as either a standalone package unit or a modular concrete design.

    More Information » www.parkson.com/products/dynasand-ecowash/continuo...

    DynaSand® EcoWash®- Continuous or Inte...
  • Lamella® Gravity Settler (LGS) and Lamella® Gravity Settler Thickener (LGST)

    The Lamella® is the original inclined plate gravity settler. Introduced by Parkson in 1971, it has been the industry standard for this technology.

    Inclined plate settling works by having a solid/liquid stream that has been flocculated enter a tank and flow upward between a pack of inclined plates.  The solids fall to the plate surface, where they tumble by gravity down to a sludge collection hopper. The clarified effluent flows through orifice holes and exits the top of the settler.

    Lamella EcoFlow® is a patent-pending design change that eliminates the area of interference at the bottom of the plates and allows for full utilization of the plate settling area.  This translates to a capacity increase of 25% in the same footprint!

    More Information » www.parkson.com/products/lamella-ecoflow/original-...

    Lamella® Gravity Settler (LGS) and Lame...

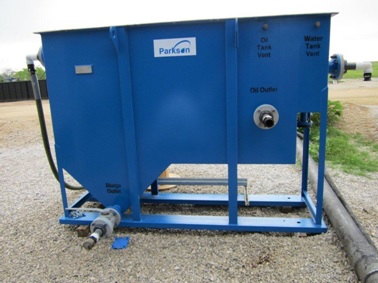

  • SRC & SRM Oil/Water Separator

    Parkson’s Model SRC and SRM Oil/Water Separators offer a reliable, compact, and economical solution to a wide array of oil/water separation applications. The Oil/Water Separators remove free, non-emulsified oil and settleable solids to produce an effluent with less than 10 mg/l of oil droplets 20 micron or larger.

    The influent flow first enters an oleophilic (affinity for oil, not for water) slant-rib coalescing pack where oil droplets adhere to the ribbed pack and merge with other droplets which grow in size and rise to the liquid surface. The design of the coalescing pack and oil attracting characteristics of the media ensures the highest degree of surface contact and coalescing efficiency. Accumulated oil at the surface displaces water and begins to overflow a weir into an oil reservoir where it can either flow out by gravity or can be pumped.

    The coalescing pack also removes solids via the 55° angle of the pack’s ribs. Once oil and solids are remove...
    More Information » www.parkson.com/products/oilwater-separator

    SRC & SRM Oil/Water Separator
  • ThickTech™- Rotary Drum Thickener

    The ThickTech™ Rotary Drum Thickener (RDT) is the industry leading sludge thickener. Its performance is unmatched, with sludge volume reduction of 90% and a 98% capture rate. In addition, this superior performance is achieved with very low amounts of polymer. The ThickTech™ system is quite compact and requires less floor space than other thickeners. It has low requirements for horsepower, water consumption and polymer usage, resulting in valuable operational efficiencies.

    The ThickTech™ RDT increases digester capacity, reduces hauling costs and can be used as a pre-thickener to increase capacity of other dewatering equipment.

    More Information » www.parkson.com/products/thicktech/rotary-drum-thi...

    ThickTech™- Rotary Drum Thickener
